How to Safely Remove a Frameless Glass Shower Panel

Removing a frameless glass shower panel safely requires suction cups, a second person, and releasing hinges in the correct sequence — door first, then fixed panels. Because frameless panels use 10mm toughened glass weighing 30–50kg, they cannot be handled alone or rested on a hard surface without risk of fracturing. Getting the hinge release sequence wrong, or trying to manage the weight without suction cups, is how panels drop — and a dropped 10mm glass panel will shatter across every surface in the bathroom. This guide covers exactly how to remove a frameless glass shower panel correctly, what tools are non-negotiable, and when the job warrants calling a professional glazier instead.

What Makes a Frameless Panel Different to Remove?

Most shower screen removal jobs are straightforward — cut the silicone, unscrew the fixings, lift the glass clear. Frameless screens are different in three specific ways that make each of those steps more demanding.

First, the weight. A frameless door panel in a standard 900mm opening uses 10mm toughened glass weighing approximately 30–35kg. At 1,200mm, that rises to 45–50kg. This is not glass you steady with one hand while loosening a hinge with the other. It requires suction cups on the panel and a second person in position before any fixing is touched.

Second, the structural load. In a framed or semi-frameless screen, the aluminium frame carries much of the glass’s weight and holds it stable during removal. In a frameless screen, the hinge bodies and clamps are the only connection between the glass and the wall. When those fixings are loosened, the panel has nothing supporting it except the person holding it.

Third, the sequence. Frameless screens are installed in a specific order — fixed panels first, door last — and must be removed in the reverse order. Attempting to remove a fixed panel before the door is clear creates a situation where both pieces of glass are unsupported simultaneously. That is when panels contact each other, chip, or fall.

Understanding these three differences before you start is what separates a clean removal from an expensive one.

What Tools Do You Need Before You Start?

Every tool listed below earns its place. Substituting or skipping any of them increases the risk of glass breakage, tile damage, or injury.

• Suction cups (minimum two, rated for glass) — the most critical tool for frameless glass shower panel removal. A pair of quality suction cups rated to at least 80kg each gives you control over the panel as hinges are released. Without them, you are holding 40–50kg of glass by its edge — which is neither safe nor stable.
• Stanley knife or silicone removal tool — all silicone at glass-to-wall and glass-to-floor junctions must be cut before any fixing is loosened. A sharp blade run along the tile face cuts the silicone bond cleanly. A dull or rounded blade drags, applies excess pressure, and risks scoring the tile.
• Allen key or hex driver set — frameless hinges are typically fixed with hex-head screws. Check the hinge type before the job and confirm you have the correct key size. Rounding a hex head on a structural hinge screw is a significant complication.
• Drop sheets, carpet scraps and thick cardboard — laid over the shower base, floor tiles, and any surrounding surfaces before work begins. If a panel drops or contacts a hard surface, cardboard absorbs the impact and contains the fragments. Toughened glass fragments are small but spread instantly.
• Safety glasses and heavy work gloves — toughened glass does not produce large shards, but glass dust and small chips are an eye and skin hazard during any removal. Glasses and gloves are non-negotiable.
• Second person — not optional for frameless glass. One person manages the suction cups and controls the panel weight. The other releases fixings and guides the panel clear. This job cannot be done safely alone.

Pro Tip: Before touching any fixings, photograph the full screen from multiple angles — hinge positions, clamp placements, silicone lines, and fixing locations. If you are having a new screen installed, these photographs help the glazier understand the existing configuration and identify any complication before the measure appointment.

How Do You Remove a Frameless Glass Shower Panel — Step by Step?

The sequence below applies to a standard hinged-door frameless configuration — the most common type installed in Gold Coast homes and apartments across Surfers Paradise, Broadbeach, Robina, and Helensvale. Variations for pivot-clamp and fixed-panel-only configurations are noted where relevant.

Step 1: Lay drop sheets and cardboard — cover the shower base, floor tiles, and any tiles adjacent to the screen. Do not skip this step to save time. It takes two minutes and eliminates the most common source of collateral damage during frameless glass panel removal.

Step 2: Cut all silicone — run a sharp Stanley knife or silicone removal tool along every silicone joint: glass-to-wall at the hinge side, glass-to-floor at the base, and the door seal perimeter where it meets the fixed panel edge. Every millimetre of silicone must be cut before any fixing is loosened. A panel that is still partially bonded by silicone will resist movement and concentrate stress at the fixed point — which is where glass fractures.

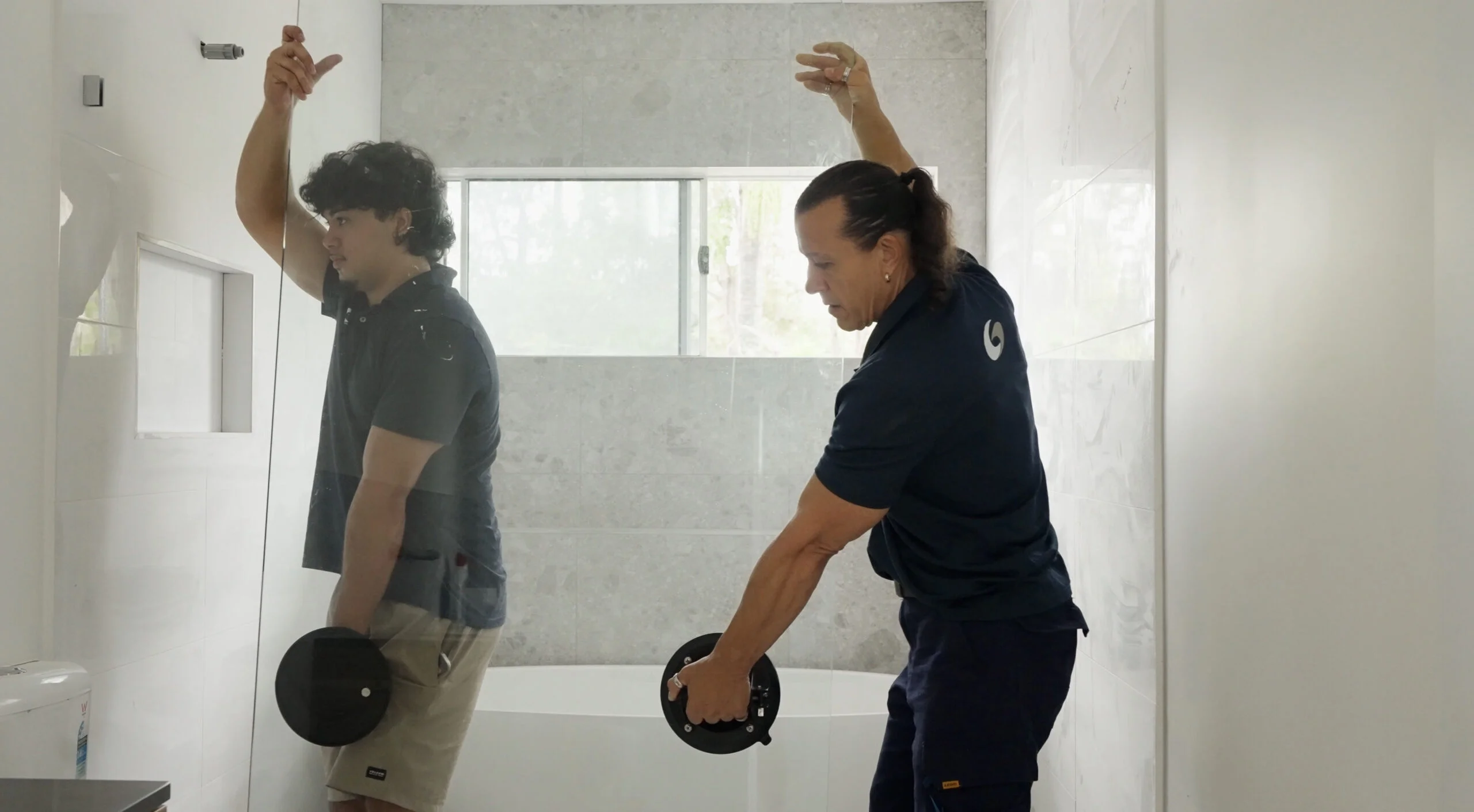

Step 3: Attach suction cups to the door panel — position one suction cup in the upper third of the door panel and one in the lower third. Confirm both are engaged and holding before proceeding. Your second person takes the suction cups and holds the panel steady.

Step 4: Loosen (do not remove) the hinge body screws — using the correct Allen key, loosen the screws securing the hinge body to the wall by two to three turns. Do not remove them fully yet. Loosening allows the hinge to release its grip on the glass without the panel suddenly becoming free. Your second person maintains firm pressure on the suction cups throughout this step.

Step 5: Slide the door panel off the hinge — most frameless hinges in Australia use a “C” cutout in the glass. — the door panel slides straight out of the hinge when the screws are loosened. With suction cups engaged and both people in position, slide the door panel away and clear of the hinges. Move it laterally away from the opening and stand it onto the cardboard or carpet scrap.

Step 6: Remove the fixed panels — with the door clear, attach suction cups to the fixed panel or panels. Loosen the wall clamps and standoffs using the appropriate driver. Support the panel weight throughout. Lower each fixed panel flat onto the cardboard, separated from the door panel. Do not stack panels.

Step 7: Remove hinge bodies and clamps from the wall — with all glass clear, remove the remaining wall fixings.

How Do You Handle the Weight of a 10mm Glass Panel Safely?

The weight of frameless glass is where most DIY removals go wrong. Here is what 10mm toughened glass actually weighs, and what that means practically:

Suction cups rated to at least 80kg per cup are the minimum. Quality glazing suction cups have a visible pressure gauge or indicator — do not use household or general-purpose suction cups for frameless glass. They are not rated for this load.

When moving a panel clear of the opening, travel distance should be minimised. The further the glass travels from its original position, the more opportunity for contact with walls, doors, vanities, or other fixtures. Clear the path before lifting. Lower the panel flat as soon as it is clear of the opening — every second it is being carried upright is a second it can pivot unexpectedly.

What Are the Most Common Mistakes When Removing Frameless Glass?

These are the errors that turn a manageable job into a repair bill:

• Attempting it alone — frameless glass panel removal is a two-person minimum job. There is no safe workaround. A single person cannot simultaneously manage a 40–50kg glass panel on suction cups and release hinge fixings. If you do not have a second person available, stop and book a professional.
• Cutting silicone incompletely — one of the most common causes of glass fracture during removal. A panel that is still bonded by even a short section of silicone will resist movement, and the resulting stress concentrates at the bonded point. Run your knife along every millimetre of every silicone joint before touching any fixing.
• Storing panels on their edge — a panel resting against a wall will slide. Always store flat on cardboard.
• Using undersized suction cups — household suction cups are not rated for 10mm glass weights. Use glazing-grade suction cups rated to at least 80kg per cup.

When Should You Call a Professional Instead of Removing It Yourself?

DIY removal of a frameless glass shower panel is achievable when conditions are straightforward — a standard hinged configuration, correct tools, two people, and no signs of prior water damage. Outside those conditions, the risk-to-reward ratio shifts quickly.

Call a professional glazier for frameless panel removal if:

• You cannot source a second person — this is not a job that can be adapted for solo work. The weight and handling requirements of 10mm glass make a second person a fixed requirement, not a preference.
• The screen is in a Gold Coast apartment building — high-rise buildings in Surfers Paradise, Broadbeach, Robina, and Southport add complications: lift access for glass disposal, building management coordination, and corridor constraints that make panel manoeuvring significantly more complex. A professional team manages this as routine.
• The hinges are corroded or seized — frameless hinges in beachside suburbs — Mermaid Beach, Coolangatta, Hope Island — can corrode to the point where releasing them requires force that destabilises the panel. A corroded hinge screw that shears during removal leaves the panel partially fixed and uncontrolled. Professional assessment before forcing anything is the right call.

Final Thoughts

Removing a frameless glass shower panel is not the most complex job in a bathroom renovation — but it is one of the least forgiving. The weight of 10mm toughened glass, the precision required in the hinge release sequence, and the consequences of a panel drop mean that cutting corners on tools, preparation, or personnel is never worth it.

Get the tools right, get a second person, cut every millimetre of silicone before touching a fixing, and store the panel flat the moment it clears the opening. Follow that sequence and the job is manageable. Skip any part of it and the job becomes significantly more expensive.

Gold Coast Shower Screens handles frameless screen removal and replacement across the Gold Coast — including high-rise apartments and coastal properties where standard removal approaches don’t apply. Contact us for a free assessment if you are unsure about your screen’s condition or configuration before removal begins.
